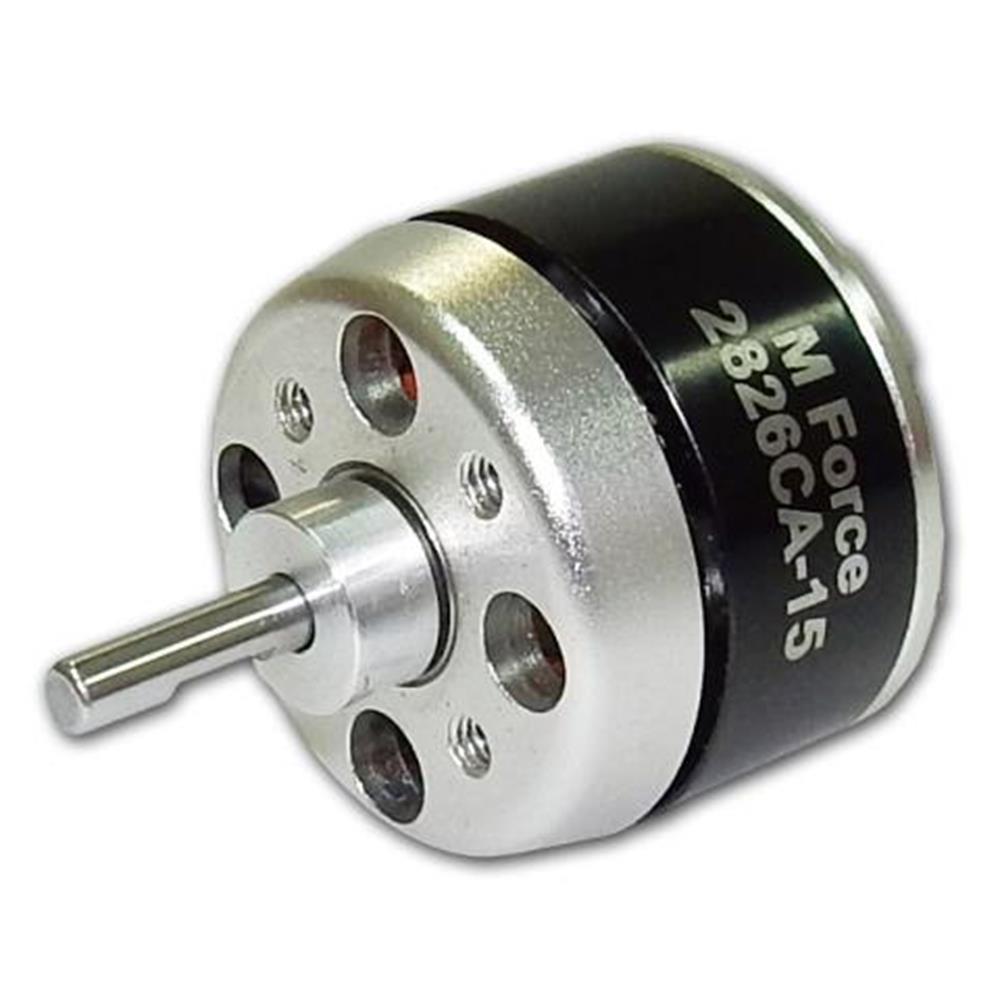

Hacker HC3506R M Force 2826CA-15R KV 1200 brushless Electro Motor

Hacker HC3506R M Force 2826CA-15R KV 1200 brushless Electro Motor

Outrunner electromotor with two sided shaft.
Two-sided shaft gives possibility to install the motor with or without X mount. It is possible to use prop adaptor from the box or other (prop saver with O-ring etc.).
Suitable for mounting folding propeller 6/3 (HC5417), 8/6 (HC5417A) nebo 9/6 (HC5417B).
For SKG Gliders, Vagabond XL, Warbirds 840mm, Zoom 4D, Super Zoom (basic version), Extra double Hacker, Piper CUB 1200mm, Joker II.

Package includes:
1x electromotor with conectors
3x conector for ESC
1x mounting cross (pitch 34/34mm)
4x screw for mounting cross
1x prop shaft


Engineering characteristic
Weight: 44g
Lenght: 25mm
Diameter: 28mm
KV: 1200
Number of cells (LiPo): 2-3
Mounting holes: 16/19mm
Max. Burst Current (15s): 15A
Max. Burst power (15s): 150W
Prop. Range: 7/4 - 9/4,7
Recommended ESC: MC 22A (HC3370)
Shaft Diameter: 3,175mm
Model Class: SKG gliders, Vagabond XL, Warbirds 840mm, Super Zoom (základní verze), Zoom 4D, Extra Double Hacker, Piper Cub 1200mm, Joker II
