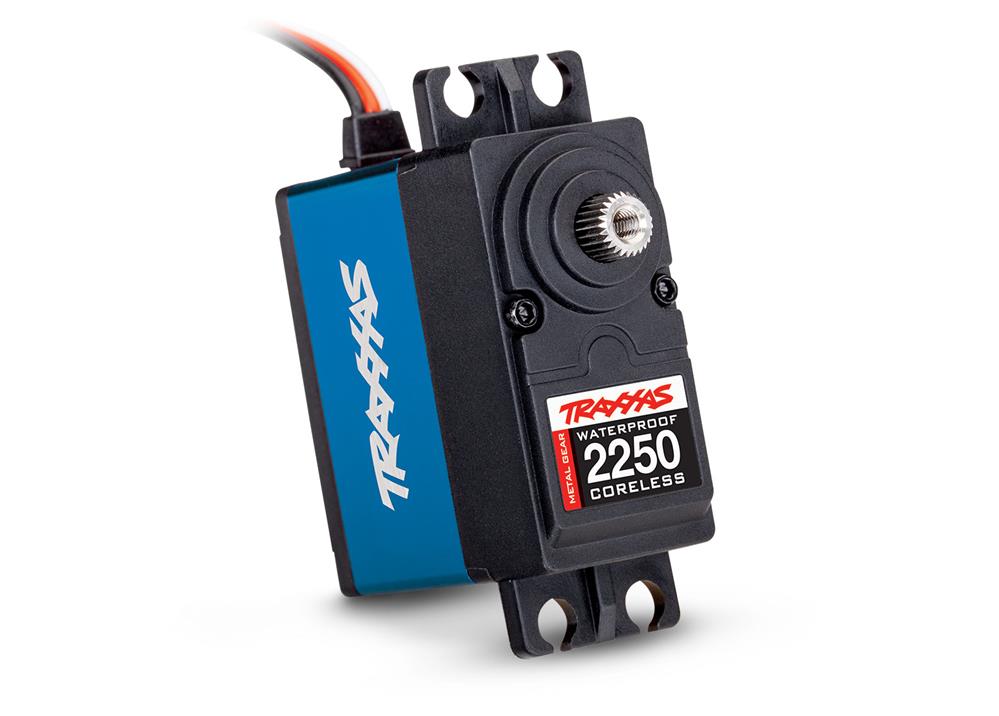

Traxxas 2250 - Servo digital high-torque 330 coreless metal gear (ball bearing) waterproof

Traxxas 2250 - Servo, digital high-torque 330 coreless, metal gear (ball bearing), waterproof

Brand: Traxxas

Part Number: 2250

High-Torque 330 Blue Servo
The Traxxas High-Torque 330 Blue servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A powerful coreless motor provides 330 ounce-inches of torque for the most demanding applications.* The High-Torque 330 servo is fully waterproof, not just “water resistant” and drops into most 1/10 Traxxas vehicles for that perfect factory fit.



The Power to Perform
With over 2.5 times more torque than the standard #2075 servo, the High-Torque 330 provides noticeably faster turning speed and works great with TSM™ equipped vehicles. Traxxas High-Torque servos are the perfect upgrade for high-demand applications like TRX-4, Unlimited Desert Racer, Slash, Stampede, or almost any 1/10 Traxxas vehicle requiring extreme performance. Replace the E-Revo's dual servos with a single #2250 for lighter weight, more torque, and lightning-quick steering response. Elevate your steering performance to the next level with the High-Torque Blue 330 servo.



Waterproof
Waterproof Not "Water Resistant"
Traxxas knows the difference between “water resistant” and waterproof. Traxxas High-Torque servos are completely waterproof to give you the freedom to run when you want, where you want. Power through streams and bogs without fear while trucks with “water resistant” servos are stuck on the sidelines.

­
HIGH-TORQUE 330 BLUE FEATURES
­
Factory fit for drop-in installation into Traxxas Models*
Fully waterproof, not "water resistant"
Compatible with Traxxas Stability Management™ (TSM)
330 oz-in torque at 6.0V
0.19 sec/60° at 6.0V
Metal gears
Dual ball bearings
Coreless motor technology
Aluminum center case
­
­
High-Torque 330 Digital Servo (#2250) (Cutaway View)

SPECIFICATIONS
Motor Type: Coreless
Operating Voltage: 6.0 - 7.4V DC
Speed: 0.19 sec/60° at 6.0V
Torque: 330 oz-in at 6.0V
Weight: 64g
Gears: Metal
Output Spline: 25T
Case: Plastic top/bottom, anodized aluminum center
Controller: Digital
­
APPLICATION GUIDE
­
Compatible with most Traxxas 1/10 scale electric models*
Compatible with TRX-4 models using High-Voltage BEC Kit #2262 and #8247X metal servo horn
Compatible with Traxxas nitro models using rechargeable 5-cell battery packs
Compatible with Maxx using adapter #7749 and servo arm from #5345R
Not recommended for X-Maxx
­
­


*Does not fit 4-Tec models. Minor trimming may be required on 2WD Stampede vehicles.

Servo, digital high-torque 330 coreless, metal gear (ball bearing), waterproof
Servo, digital high-torque 330 coreless, metal gear (ball bearing), waterproof
The Traxxas High-Torque 330 Blue servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A powerful coreless motor provides 330 ounce-inches of torque for the most demanding applications. The High-Torque 330 servo is fully waterproof, not just “water resistant."

Replacement or accessory part for these models:
101076-4 Ford F-150 Raptor R
104354-74 Slash Modified MudBoss Dirt Oval Racer - BL-2S
107154-1 MINI MAXX BL-2S 4WD W/USB-C
24054-4 Bandit XL-5: 1/10 2WD RTR Buggy
24054-8 Bandit XL-5: 1/10 2WD RTR Buggy
24076-4 BANDIT VXL MAG 272R TRANS
24076-74 BANDIT VXL MAG 272R TRANS
24254-8 BANDIT 1/10 USB-C HD
36254-8 2WD Stampede HD with USB-C
36334-4 BIGFOOT 1/10 BL-2S HD
36354-4 2WD Stampede Clipless
37054-1 RUSTLER W/ LED
37054-4 RUSTLER W/ LED
37054-8 Rustler XL-5: 1/10 2WD RTR Stadium Truck w/USB-C
37076-4 - Rustler VXL: 1/10 2WD RTR Stadium Truck w/TSM
37076-74 Rustler VXL: 1/10 2WD RTR Stadium Truck w/TSM
37254-8 Rustler 2WD
37354-4 Rustler 2WD
56076-4 Summit 4Wd With Locking Diffs And High Low Gearing
58014-4 Slash 2WD Kit
58034-1 SLASH 1/10 SHORT COURSE TRUCK
58034-61 SLASH 1/10 SHORT COURSE TRUCK
58034-8 SLASH 1/10 SHORT COURSE TRUCK
58076-4 SLASH VXL MAG 272R TRANS
58076-74 SLASH VXL MAG 272R TRANS
58094-1 2017 Ford F-150 Raptor
58094-8 Ford Raptor: 1/10 Scale 2WD Replica Truck w/USB-C
58134-4 SLASH 2WD BL-2S Clipless
58234-8 SLASH 1/10 USB-C HD
58276-74 Slash VXL
58314-4 Slash 2WD Unassembled Kit
58334-4 1/10 Scale 2WD Slash
58394-4 F150 RAPTOR BL-2S HD
64077-3 XO-1: 1/7 Scale AWD Supercar with TSM
67014-4 Stampede 4X4 Kit with Electronics
67054-1 Stampede 4X4
67064-1 Rustler 4X4
67076-4 Rustler 4X4 VXL
67086-4 1/10 Stampede 4X4 VXL Monster Truck with TSM
67097-4 RUSTLER 4X4 VXL ULTIMATE
67154-4 Stampede 4X4 BL-2s: 1/10 Scale 4WD Monster Truck
67164-4 Rustler 4X4 BL-2s
67376-4 Rustler Vxl 4X4 Brushless HD
68054-1 Slash 4X4
68077-4 Slash 4X4 Ultimate (Batteries not Included)
68086-4 Slash 4X4 VXL
68154-4 Slash 4X4 BL-2s: 1/10 Scale 4WD Short Course Truck
68277-4 SLASH 4X4 ULTIMATE
68286-4 Slash 4X4 VXL
68386-4 Slash 4X4 VXL EHD
74054-4 1/10 Ford Fiesta Rally
74154-4 FIESTA RALLY 4X4 BL-2S
74276-4 Ford Fiesta Rally Vxl 4X4
82016-4 TRX-4 Assembly Kit: 4WD Chassis with TQi Link
82024-4 TRX-4 Sport: 4WD Electric Truck with TQ 2.4GHz Radio System
82034-4 1/10 TRX-4 Crawler with Traxx
82044-4 TRX-4 Sport 2023 High Trail Edition
82046-4 TRX-4 W/BRONCO BODY
82056-4 TRX-4 Scale & Trail Defender Crawler RTR
82056-84 TRX-4 Defender W/ Winch
82076-4 TRX-4 Scale and Trail Crawler with 1979 Chevrolet Blazer Body
82224-4 TRX-4 SPORT CLIPLESS
82234-4 1/10 TRX-4 Crawler with Traxx
82246-4 TRX-4 1979 FORD BRONCO CLIPLES
82276-4 TRX-4 Scale and Trail Crawler with 1979 Chevrolet Blazer Body
85086-4 Unlimited Desert Racer 4WD Electric Race Truck with Lights
86086-4 E-Revo V2 1/10 4WD Brushless Electric Monster Truck
88086-4 TRX-6 ULT RC HAULER W/WINCH
88086-84 TRX-6 Ultimate RC Hauler: 1/10 scale 6WD electric flatbed truck Ready-To-Drive
88096-4 TRX-6 Mercedes-Benz G 63 AMG 6x6
88296-4 TRX-6 G 63 CLIPLESS
90076-4 Hoss 4X4 VXL: 1/10 Scale Monster Truck with TSM
0
90376-4 Stampede 4X4 Vxl HD
0
92046-4 TRX-4 Ford F-150 Ranger XLT High Trail Edition 1/10 Scale 4X4 Trail Truck
92056-4 TRX-4 Chevrolet K10 High Trail Edition: 4WD 1/10 Scale and Trail Crawler
92076-4 2021 Ford Bronco: TRX-4 1/10 RTR 4x4 Scale and Trail Crawler
92086-4 TRX-4 HT 72 BLAZER
94046-4 Drag Slash with Ford Mustang Body
94076-4 1967 Chevrolet C10: 1/10 Drag Slash RTR With TSM
94346-4 Drag Slash with Ford Mustang Body
94376-4 Drag Slash with Chev C10 Body
Please note that some accessory parts may require other parts to fit.
