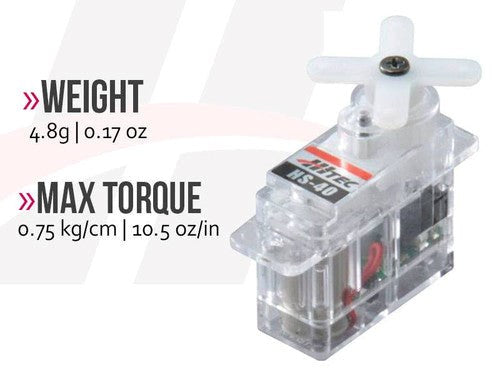

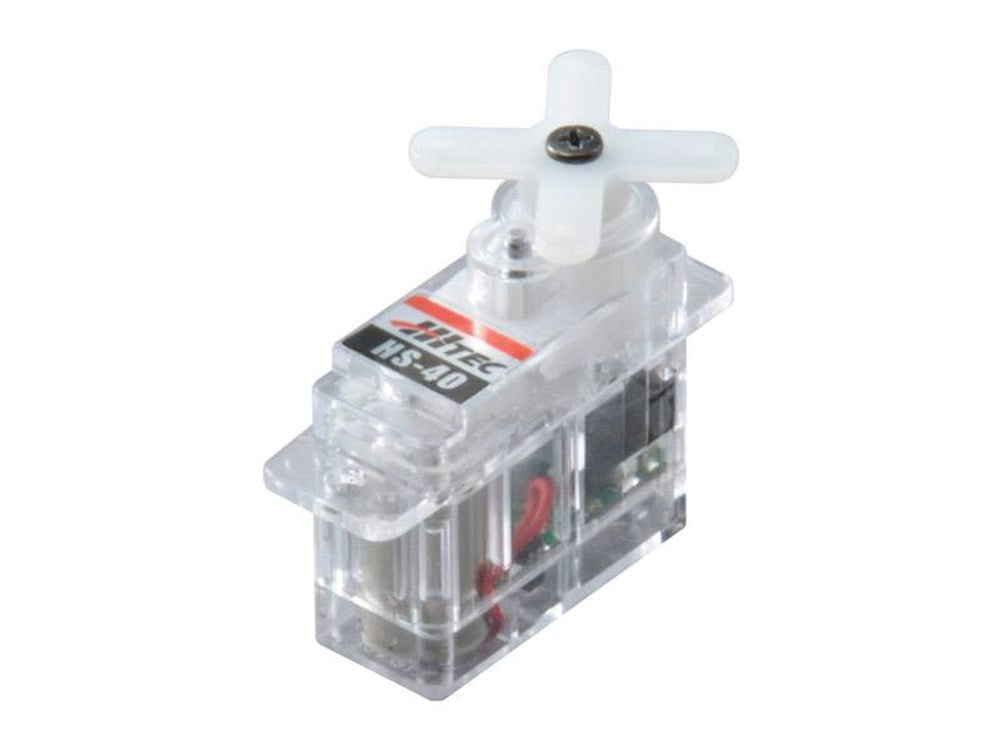

Hitec HS-40 Ecomomy Nano Servo 0.6kg/cm- 4.8V 0.09 sec 20x8.6x17mm 4.8g

Our research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet! Key Features: Nylon Gears Three-Pole Motor 4.8 & 6.0V Operation Economically Priced Technical Specifications: Performance Specifications: Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60°) 0.12 ~ 0.10 Maximum Torque Range oz. / in. 8.4 ~ 10.5 Maximum Torque Range kg. / cm. 0.6 ~ 0.75 Current Draw at Idle 8 mA No Load Operating Current Draw 60 mA Stall Current Draw 460 mA Dead Band Width 5 µs Physical Specifications: Dimensions (Inches) 0.79 x 0.34 x 0.67 Dimensions (Metric) 20.0 x 8.6 x 17.0 Weight (Ounces) 0.17 Weight (Gram) 4.8 Circuit Type HT7003 Analog SMT Motor Type Cored Metal Brush Gear Material Nylon Bearing Type None Output Shaft (type / Ømm) Feather 15 / 8 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28 / 20
