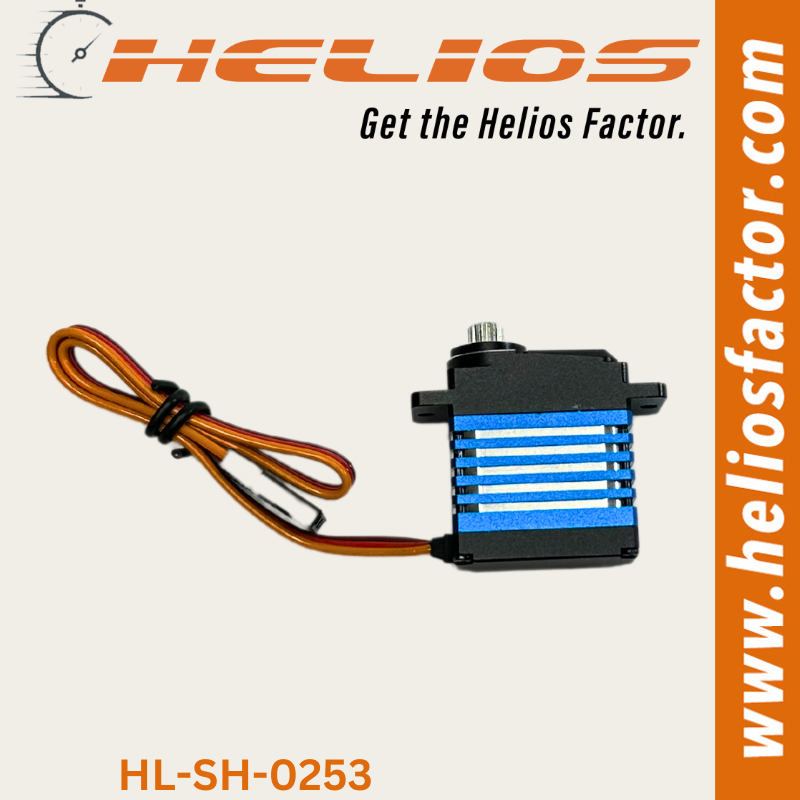

Helios - Micro Digital Servo 2.5kg - 0.048sec Metal Gear (Exceeds Savox SH-0253 Specs)

Helios Micro Digital Servo 2.5kg - 0.048sec Metal Gear (Exceeds Savox SH-0253 Specs)

Suitable for all RC, Helicopters and Aircraft.

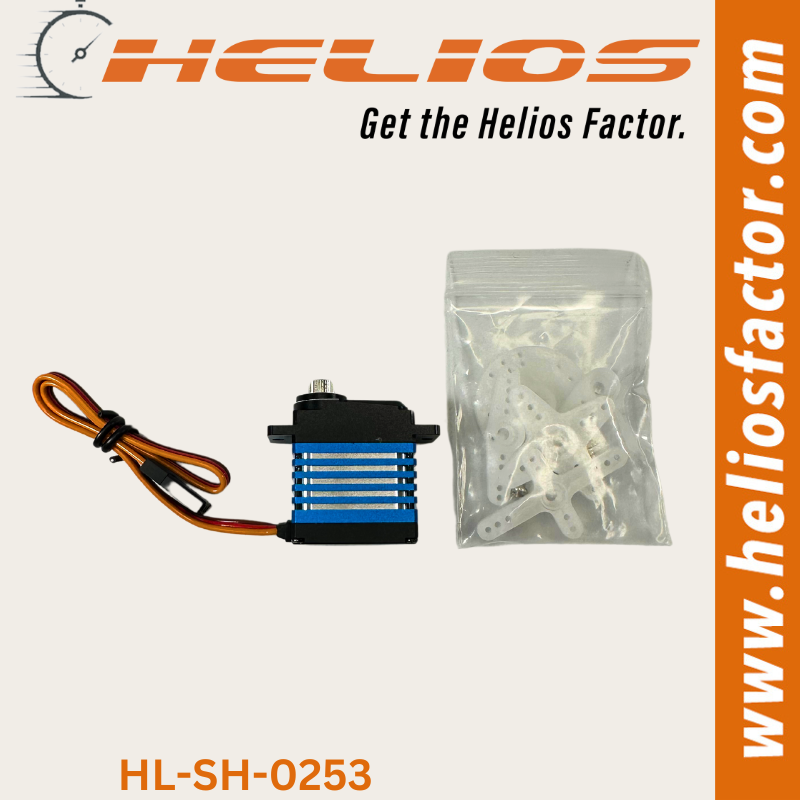

Accessories Included:
4x Rubber
4x Grommet
4x Screw
1x Plastic servo arm
1x Half plastic servo arm
1x Wheel Horn
1x Cross Horn
1x Hexagon Horn

Type:  Digital
Gear Type:  Metal
Weight:  20g

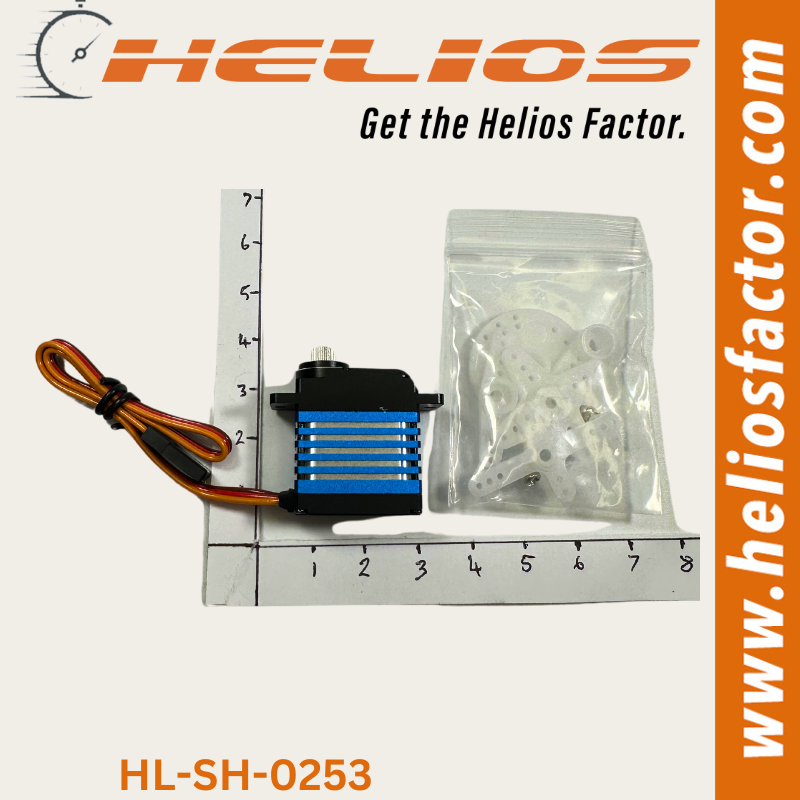

Size: 23*12*28.5mm
Control System:  (+)Pulse Width Control 1500μsec Neutral
Operating Voltage:  6.0V-7.4V
Operating Temperature Range:  (-)10 to +50 degree C
Operating Speed:  @ 6.0V-7.4V0.05sec - 0.048sec at no load
Stall Torque:  @ 6.0V -7.4V2.2kg.cm-2.5kg.cm
Current Drain:  (6.0V)20mA/idle and 80mA no load operating
Current Drain:  (7.4V)20mA/idle and 100mA no load operating
Stall Current:  1.4A/1.5A
Dead Band Width:  2μsec
Bearing Type:  Singel Bearing
Motor Type:  Coreless
Horn gear spline:  21T
Cable/Plug:  300mm/JR
Wire information:  Brown(N) Red (P) Orange(S)
